Technical Parameters

Manual butt welding machines Ø 20 - 250 mm (1“ - 5“)
Description                                    Ø mm                  Ø Inch
P110                                           20-100 mm
P160 Saniline / P5 Saniline       40-160 mm              1“-5“

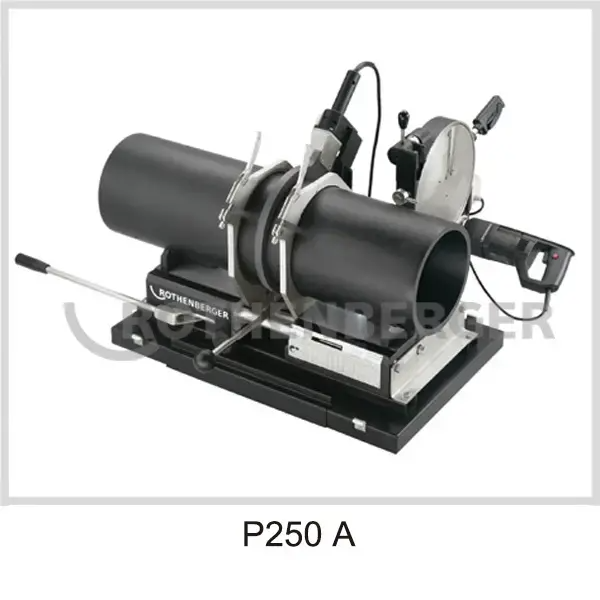

P250A                                        40-250 mm

Application and Features

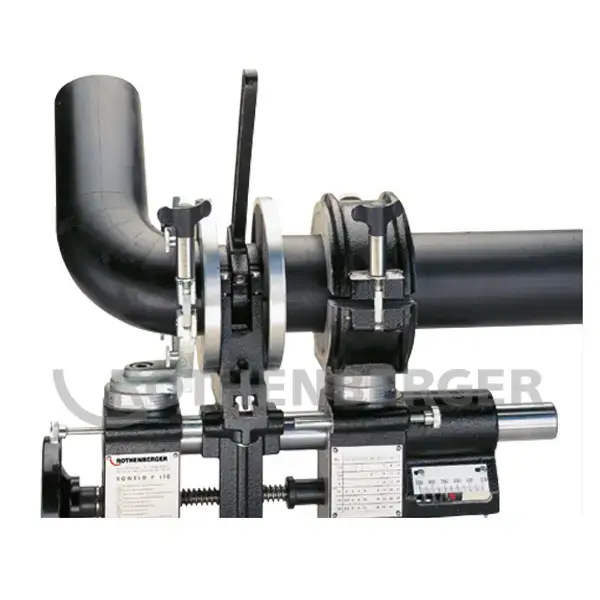

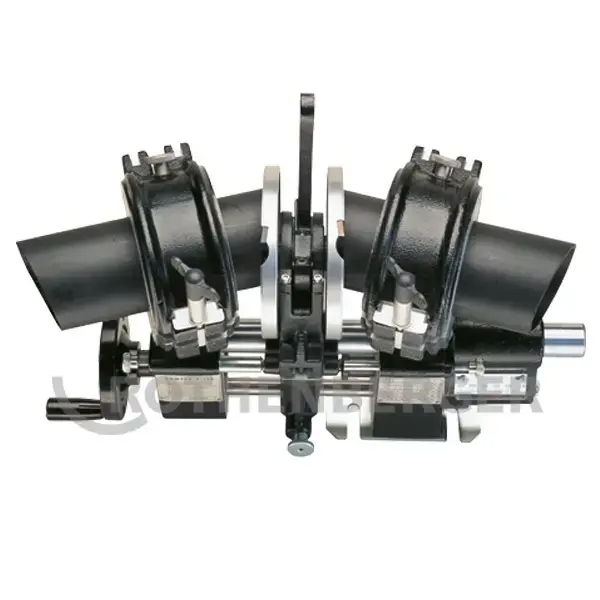

►  Manual butt welding machines Ø 20 - 250 mm (1“ - 5“).

►  For heating element butt welding of PE, PP and PVDF pipes and moulded bodies.

►  ROWELD® P110 is also suitable for manufacturing segmented bends.

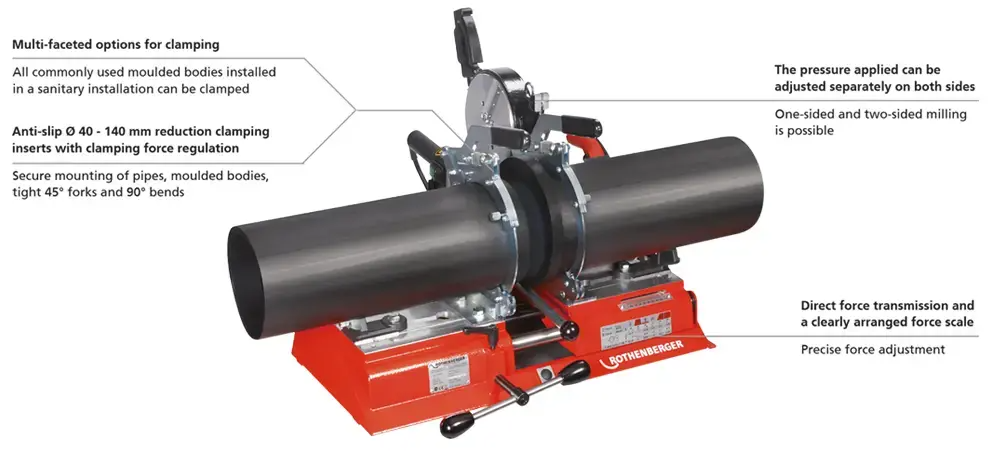

►  All machines with a different force scale which allows precise adjustment of all welding pressures.
