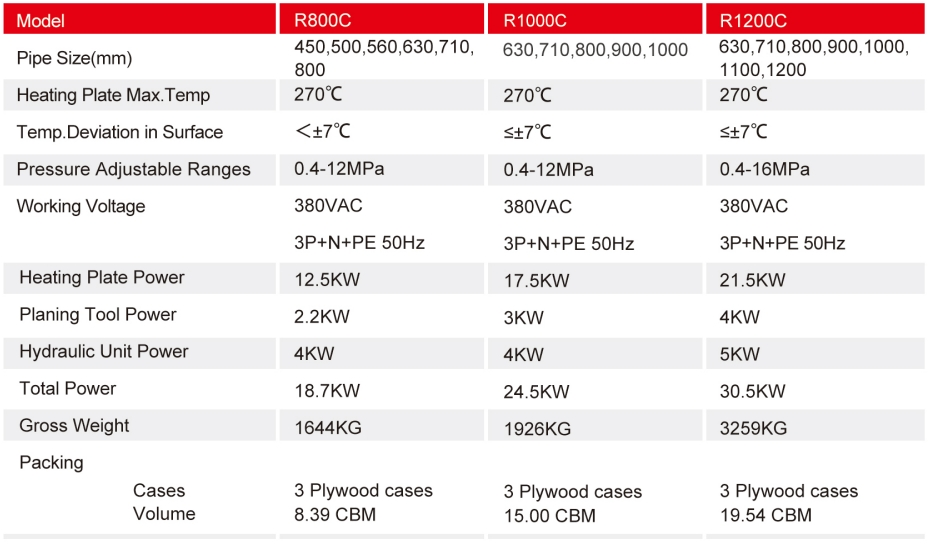

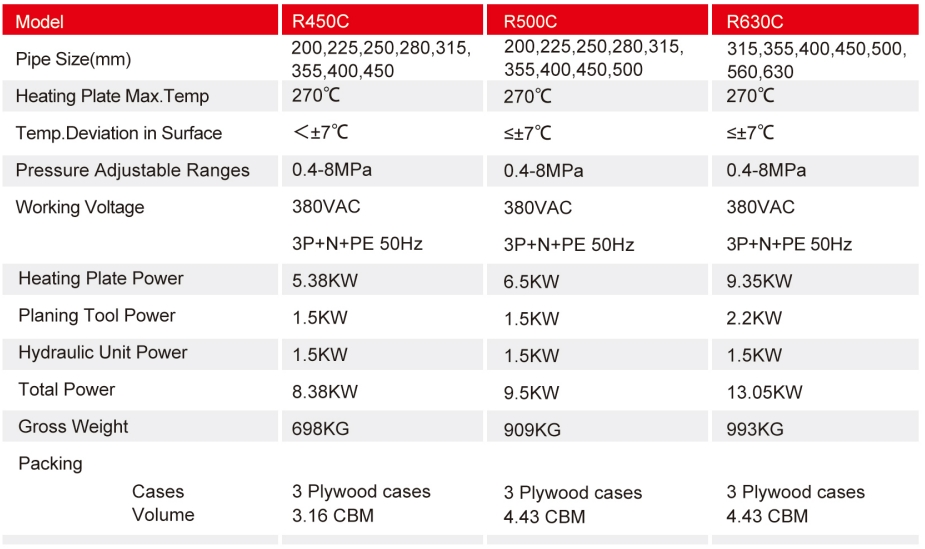

Technical Parameters

Application and Features

► Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF material.

► Consists of basic frame, CNC control, hydraulic unit, planing tool, heating plate,basket & optional parts.

► Equipped with SIEMENS PLC and touch screen control system.

► Real-time data printing, recording function and USB port available.

► Pre-installed welding standard such as CTSG, ISO, DVS, GIS, etc.

► Hydraulic heating plate system, full automatic process.

► Standard with single inserts to improve the accuracy of pipeline alignment.

► BDS/GPS Positioning and remote data transmission function available.

► Fingerprint, identification of operators.

► Part of SMART GAS﹒CLOUD WELDING system, easy extension.
